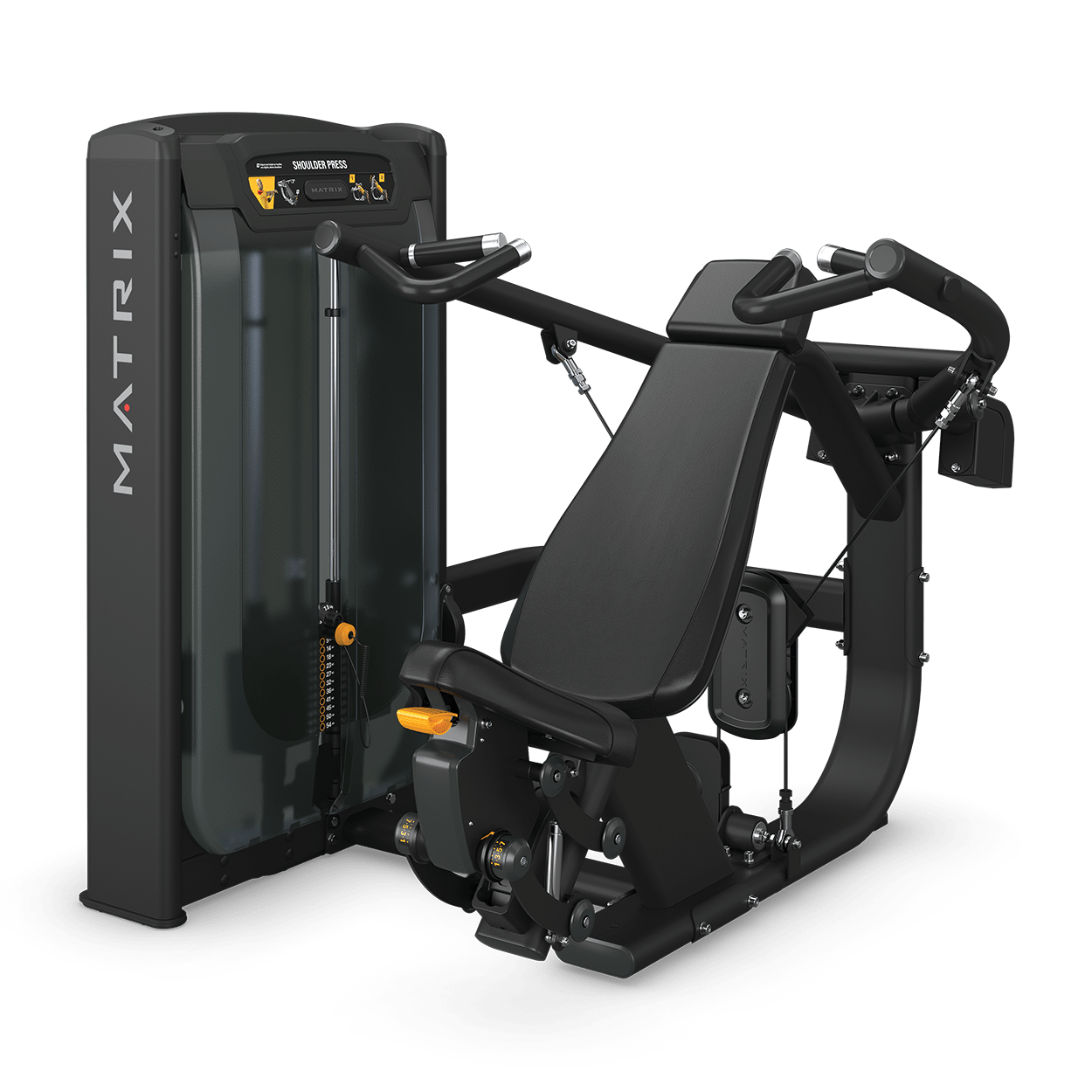

Ultra Base Trim Converging Shoulder Press
A premium selectorized strength machine engineered for smooth performance and precise adjustments.
Featuring a gas-assisted 7-position seat, color-coded adjustment points, and internally lubricated cables, it delivers safe and intuitive operation. Built with a heavy-duty steel frame, full weight stack shielding, and integrated leveling system, it’s ideal for commercial gyms seeking durability, comfort, and consistent training results.
Additional information
Description
Description
| Category | Details |
|---|---|
| User Adjustment Range | 7-position Seat |
| Machine-assisted User Adjustments | Gas-assisted Seat |
| Color-coded Pivots & Adjustment Points | Yes |
| Available Frame Colors | Iced Silver, Matte Black, Graphite Grey, Gloss Black, Lace White, Polarized Titanium |
| Frame Finish | Proprietary Two-coat Powder Process |
| Cable Transmission | Internally Lubricated Cables and Fittings |
| Machine Anchoring | Independent Machine Hold-down Brackets |
| Integrated Leveling System | Yes, Top-down Leveler |
| Overall “Static” Dimensions (L×W×H) | 168 × 146.5 × 135 cm / 66.1 × 57.6 × 53 in |
| Overall “In-use” Dimensions (L×W×H) | 168 × 146.5 × 174 cm / 66.1 × 57.6 × 68.4 in |
| Product Weight (G7-S23B) | 237.3 kg / 523.5 lbs |
| Product Weight (G7-S23BH) | 273.5 kg / 603 lbs |
| Max Training Weight (G7-S23B) | 54 kg / 120 lbs |
| Max Training Weight (G7-S23BH) | 90 kg / 200 lbs |
| Maximum User Weight | 136 kg / 300 lbs |
| Front Placards | Muscle Call-outs, Exercise-specific Stretching, Start & Finish Illustrations, Proper Machine Adjustments, Color-coded Identification |
| Rear Placards | Color-coded Identification, Exercise-specific Stretching |
| Placard Color Coding | Yellow (Upper Body) |
| Rep Counter | No |
| Personal Storage | Two Tactile Storage Mats & One Personal Device Cradle |
| Action-specific Grips | No |
| Contoured Seat | Yes |
| Total Stack Weight (G7-S23B) | 54 kg / 120 lbs |
| Total Stack Weight (G7-S23BH) | 90 kg / 200 lbs |
| Weight Plate Increments | 4.5 kg / 10 lbs |
| Stack Height | 135 cm / 53 in |
| Weight Stack Guarding | Full Front & Rear Shields |
| Incremental Weight System | No |
