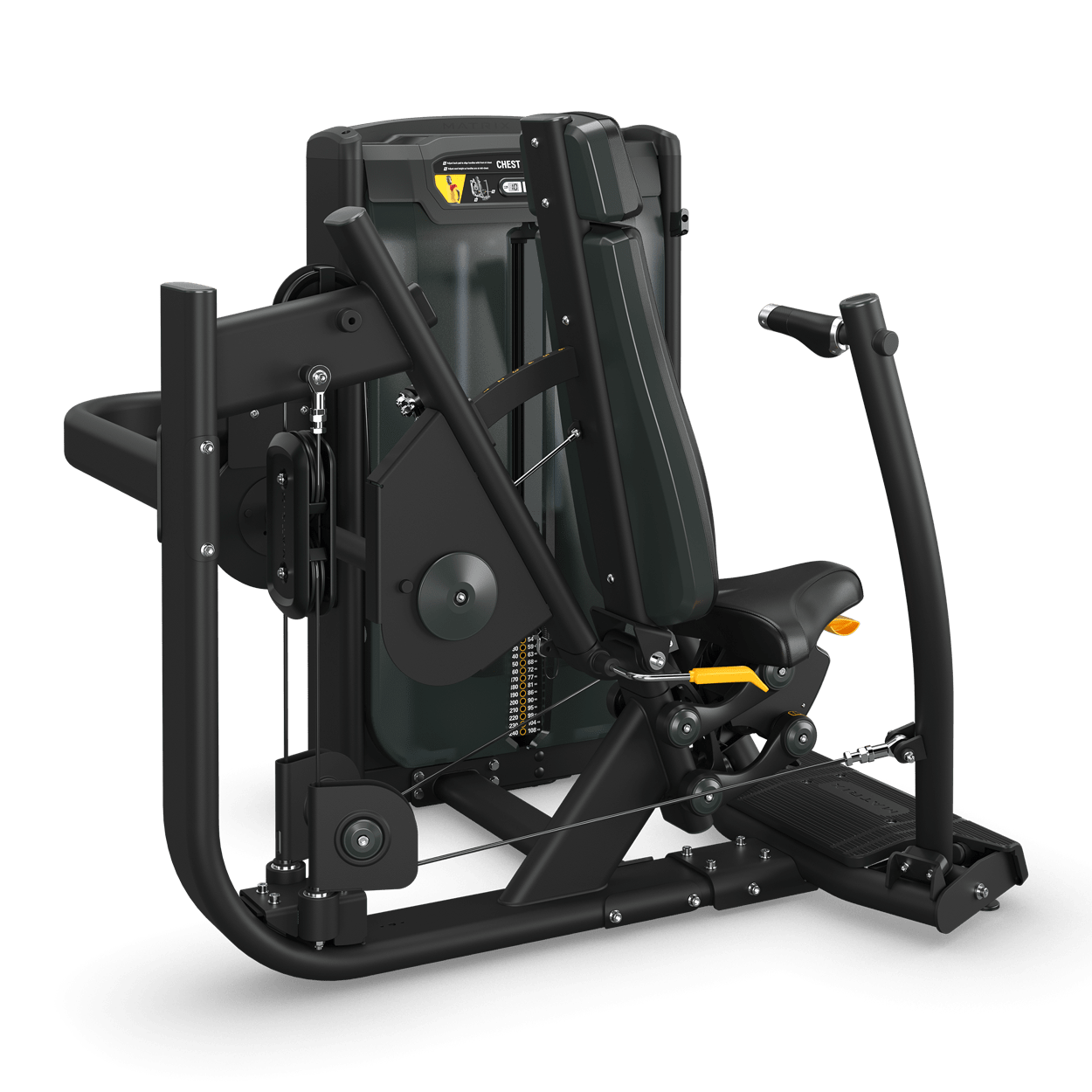

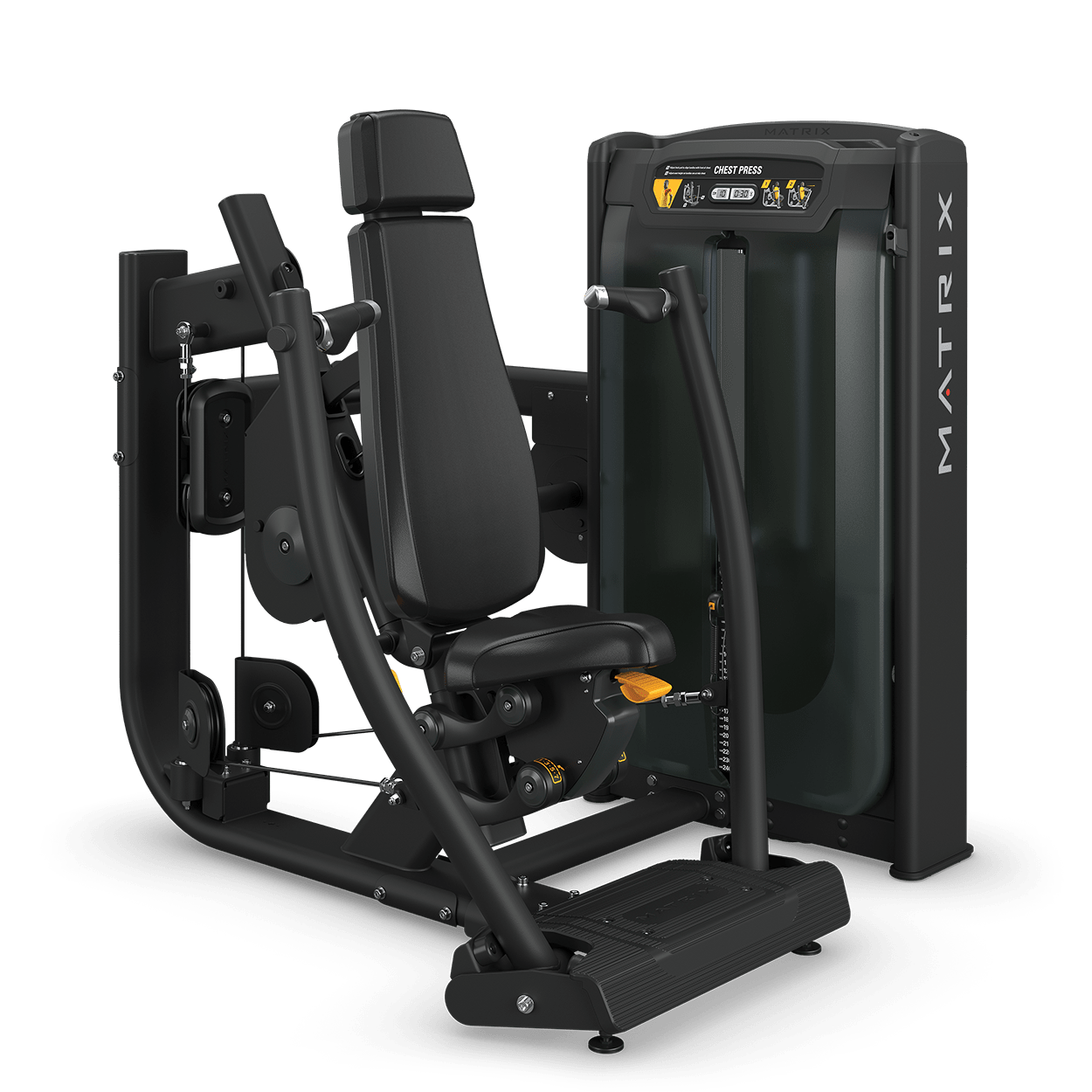

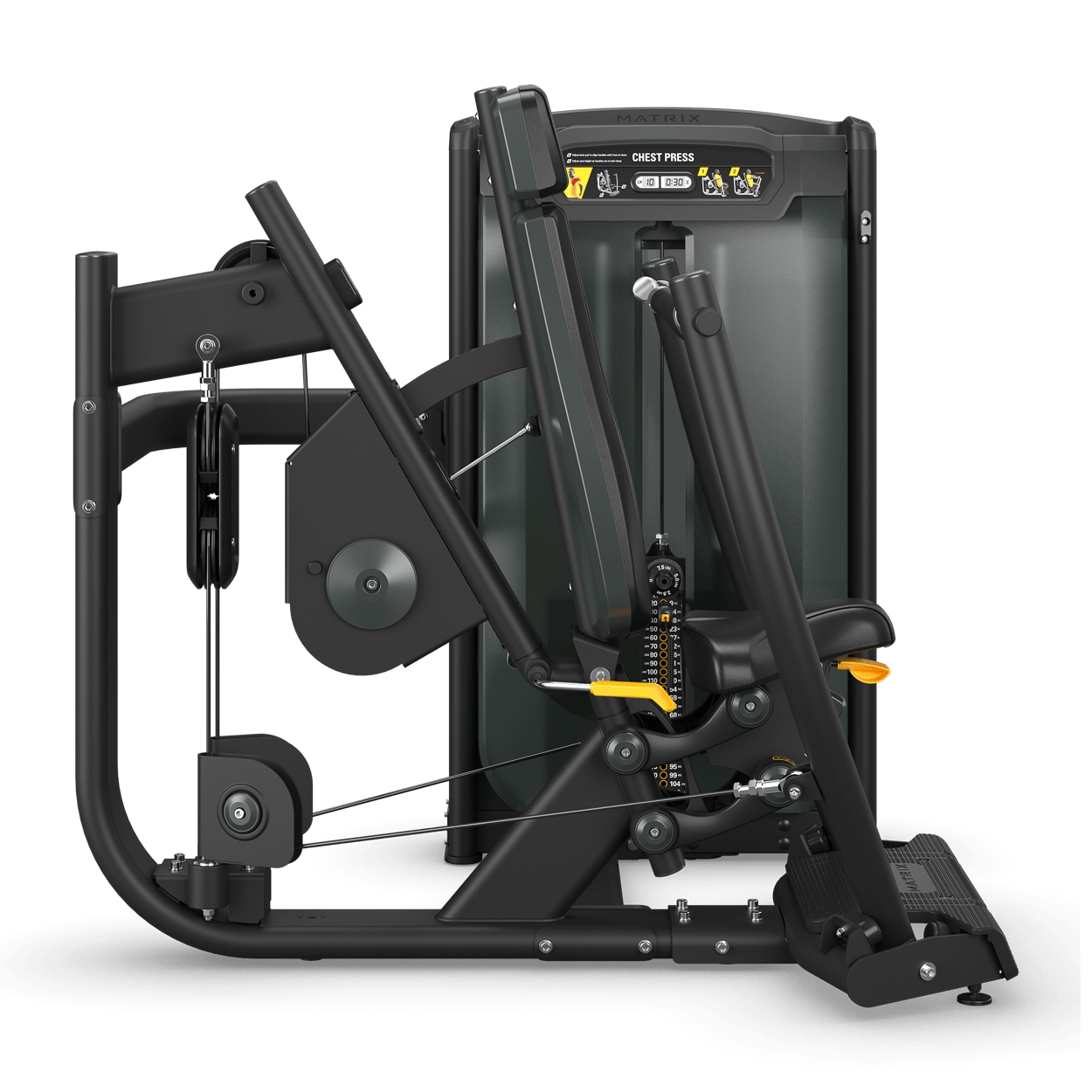

Ultra Converging Chest Press
The Ultra Lateral Raise tones and builds mid-shoulder muscles with a design that’s as powerful as it is intuitive. Oversized arm pads enhance comfort for users of all sizes, while rotating handles provide a natural, comfortable motion.
Additional information
Description
Description
Adjustments
User adjustment range
7 position seat, 6 back pad positions with a total range of 20 degrees (4 degrees per position)
Machine assisted user adjustments
Spring assisted seat, gas assisted back pad
Color coded pivots & points of adjustment
Yes
Frame & Cables
Available frame colors
Iced Silver, Matte Black, Gloss Black, Lace White, Polarized Titanium
Frame finish
Proprietary two-coat powder process
Cable transmission
Internally lubricated cables & fittings
Machine anchoring
Independent machine hold down brackets
Integrated leveling system
Yes, top-down leveler
Tech Specs
Overall ”static” dimensions (L x W x H)
140 x 141 x 135 cm / 55” x 55.4” x 53”
Overall ”in-use” dimensions (L x W x H)
168.5 x 141 x 135 cm / 66.3” x 55.4” x 53”
Product weight
343.9 kg / 758.5 lbs.
Rep counter machine usage tracking
Service mode tracks total machine reps and hours of use
Rep counter battery life
Approximately 3 years
Rep counter power supply
2 AA batteries
User Amenities
Front placards
Muscle call outs, exercise specific stretching, start & finish exercise illustrations, proper machine adjustments, color-coded machine identification
Rear placards
Color-coded machine identification, exercise specific stretching
Placard color coding
Yellow (upper body)
Rep counter
Electronic counter displays reps, exercise time and rest time
Personal storage
Two tactile storage mats, personal device cradle and towel hook
Action Specific Grips
Exercise specific grips improving feel, function and form during use
Foot platform
Foot rest for comfort during exercise
Contoured seat
Yes
Weight Stack
Total stack weight
108 kg / 240 lbs
Weight plate increments
4.5 kg / 10 lbs
Incremental weight system
1.1, 2.3, 3.4 kg / 2.5, 5, 7.5 lbs
Max Training Weight
111.4 kg / 247.5 lbs
Consistent 53” stack height
Yes
Weight stack guarding
Full front and rear shields
